Troubleshooting guide for Standard system

• Always update the inventory after every refill.

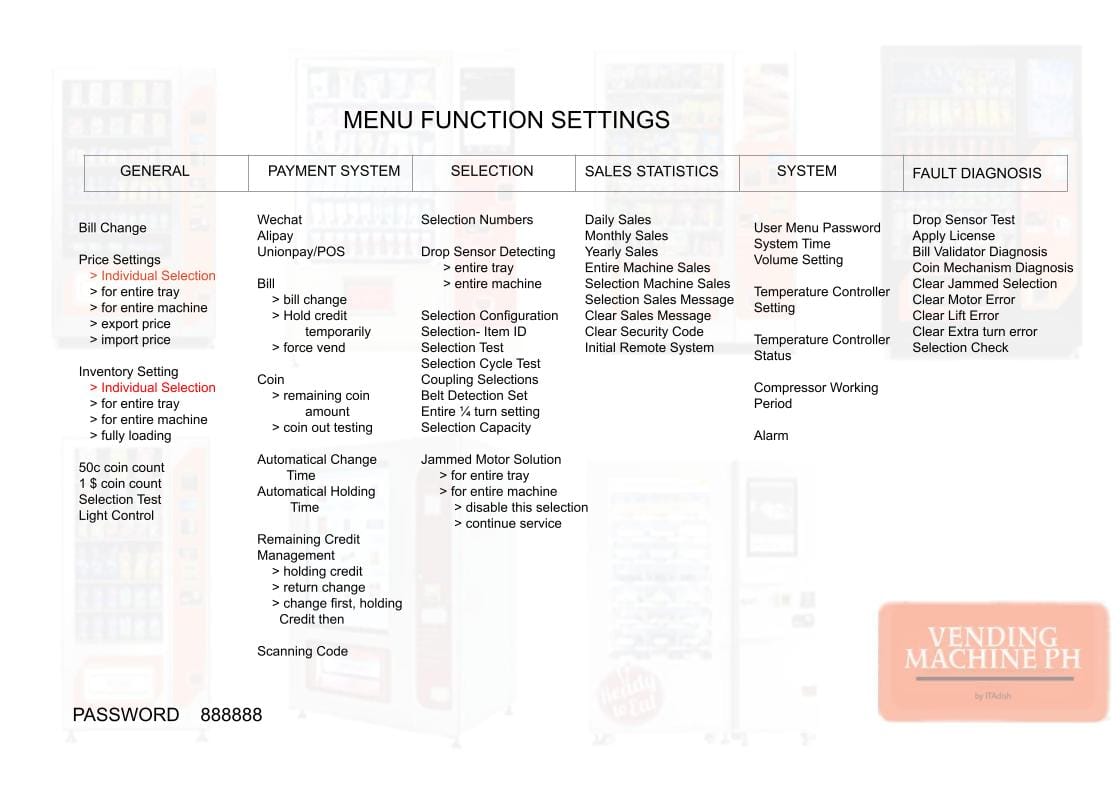

• 1st password - 888888 (General )

• 2nd password - 125808521

( Swipe left to see other photos )

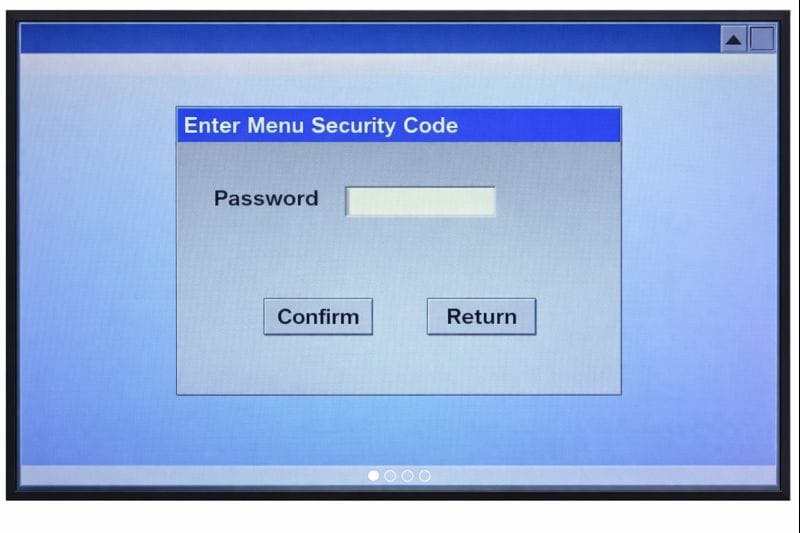

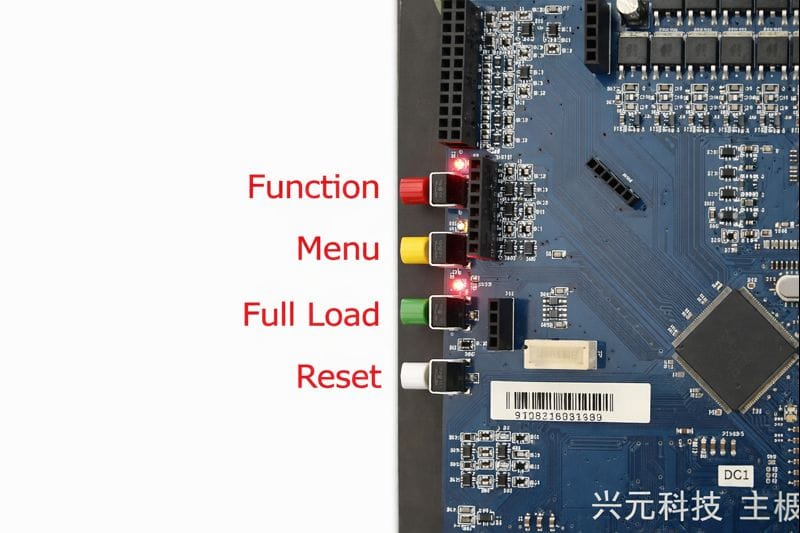

1. Press the Yellow button . Enter the Password 888888 on the screen

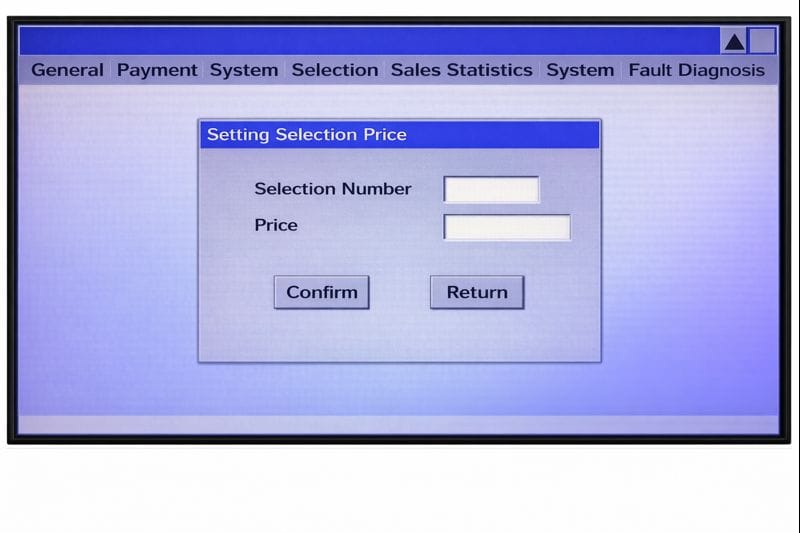

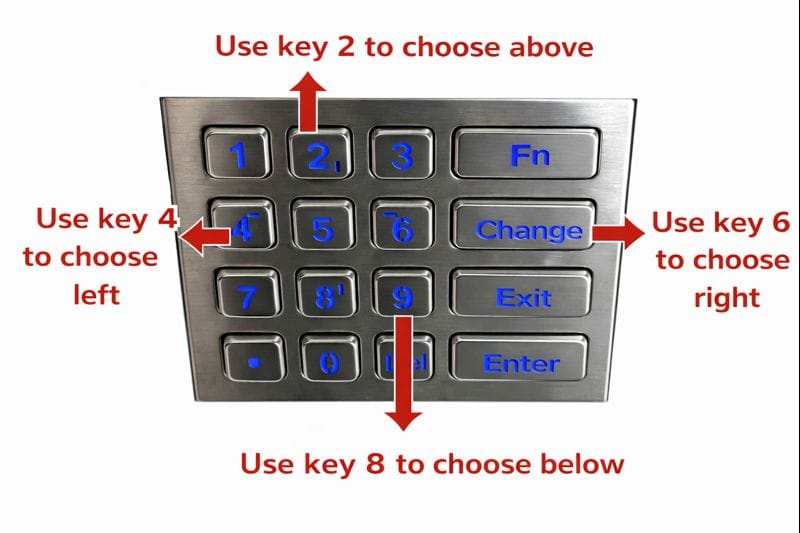

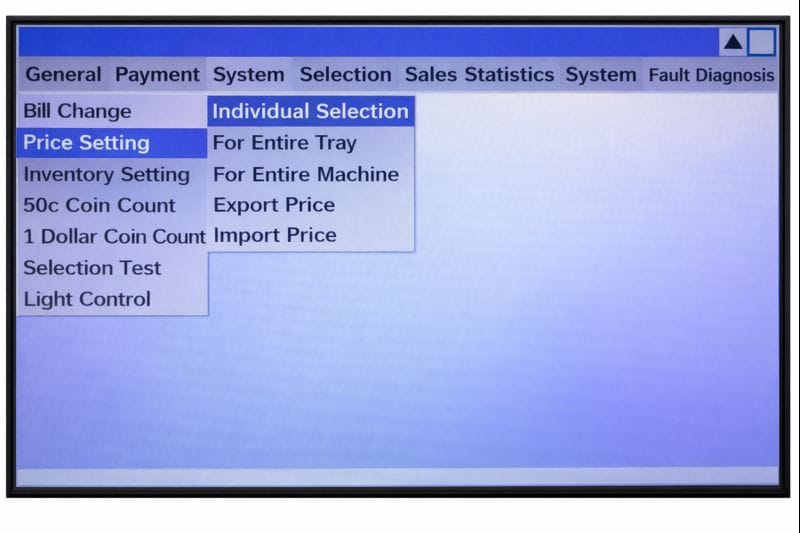

2. Hover to Price setting, choose individual, entire tray, or entire selection.

3. Enter the Selection Number, the price

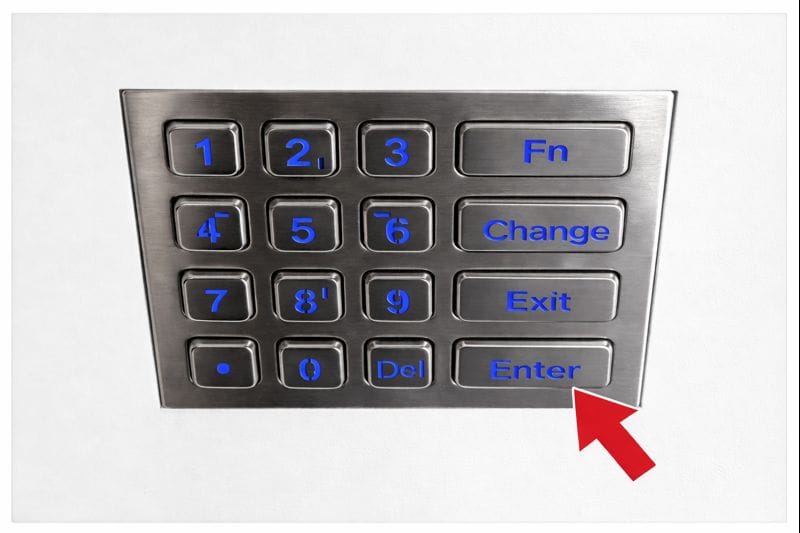

4. Then press the Enter.

( Swipe left to see other photos )

1. Press the Yellow button . Enter the Password 888888 on the screen

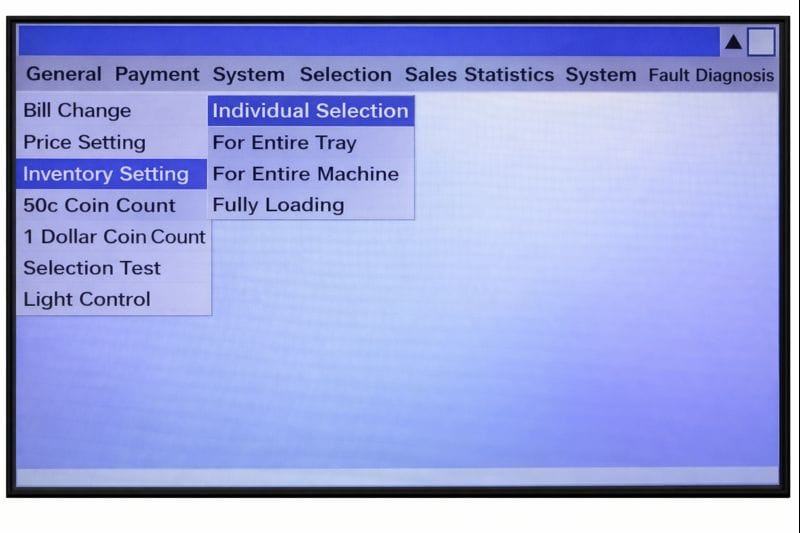

2. Hover to Inventory Settings. Choose individual Selection

3. Enter the selection number, Put how many products on the selection

ex. currently 2 chips and you added 4 more, put 6 on the inventory

4. Press Enter to confirm.

( Swipe left to see other photos )

1. Press the Yellow button . Enter the Password 888888 on the screen

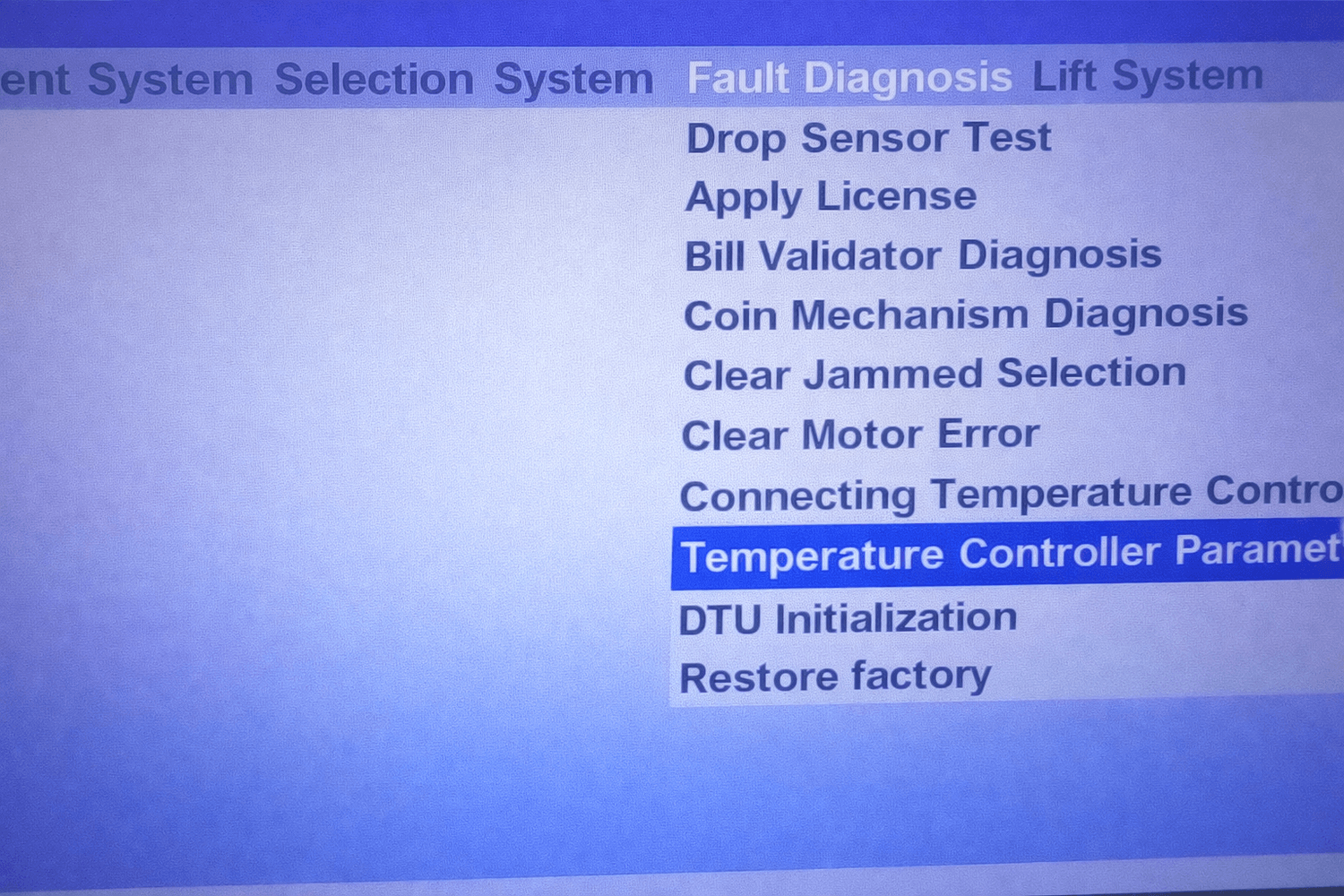

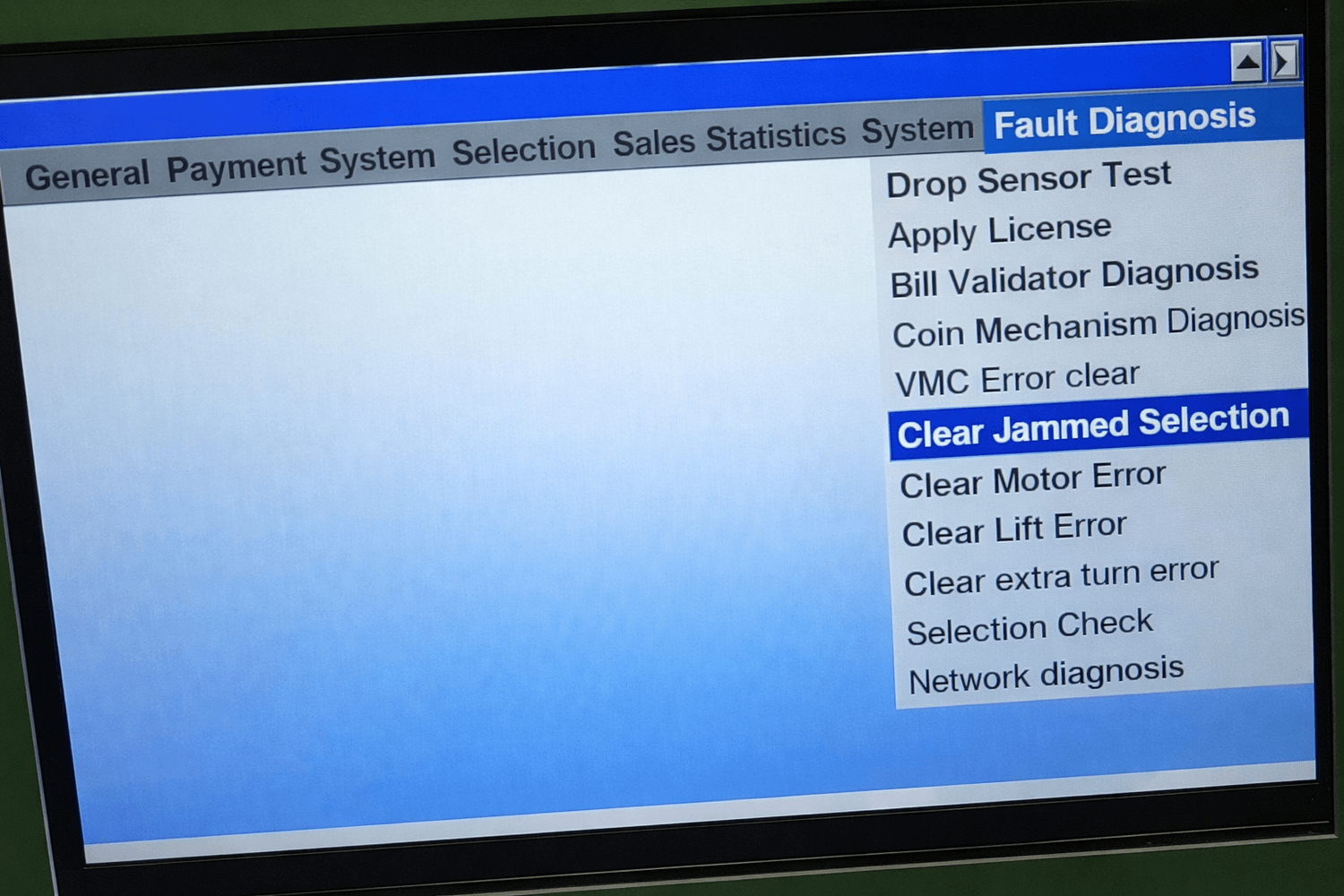

2. Hover to Fault Diagnosis

3. Clear All the Error ( Jammed Section, Motor and Lift Error )

4. Clear and Exit. Restart the Vending Machine

( Swipe left to see other photos )

1. Press the Yellow button . Enter the Password 888888 on the screen

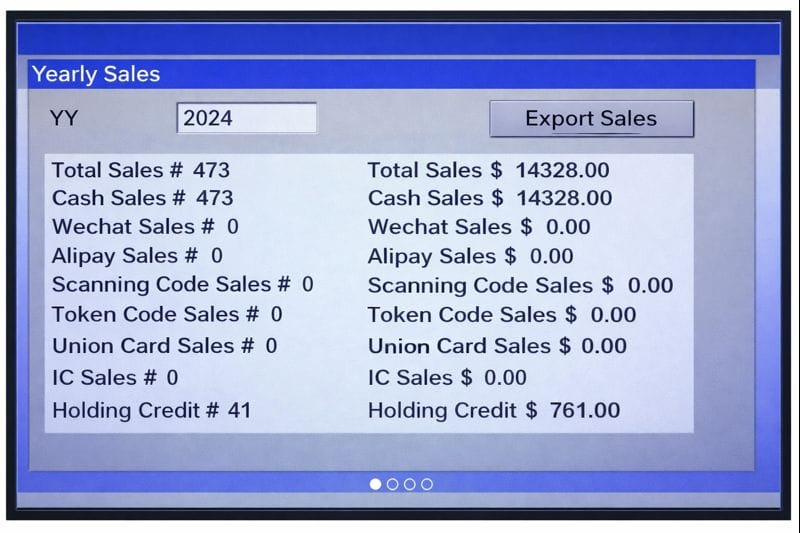

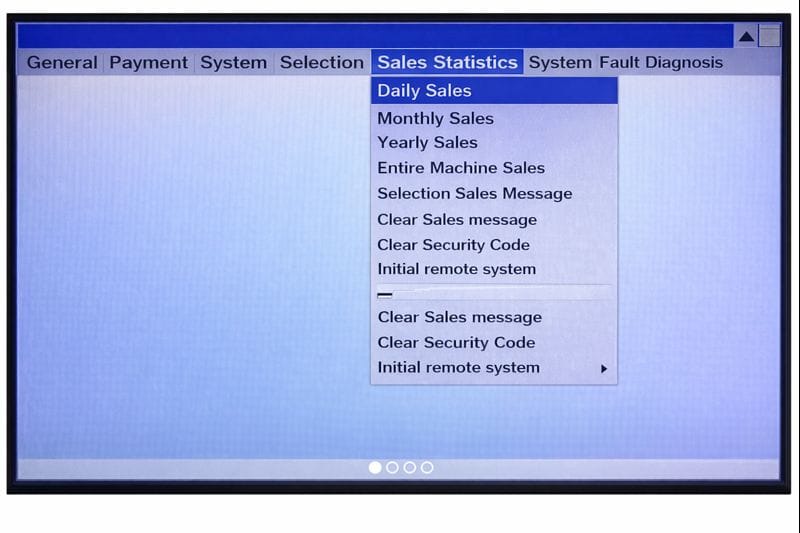

2. Hover to Sales Statistics,

3. Choose Daily or Monthly or Yearly.

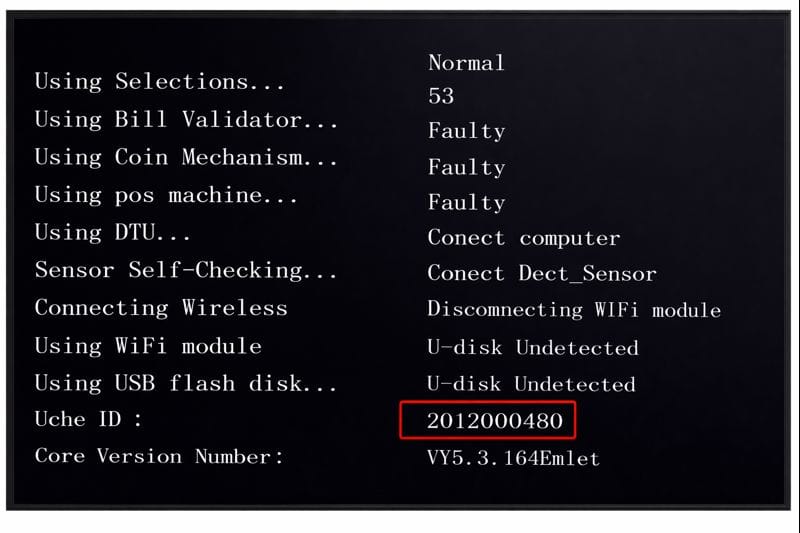

Step 1: Provide to us the Machine ID so we can check the back end

• Go to the settings, press the yellow button for settings,

• then enter the password 125808521.

• Look for Temperature Controller Parameter-Slave

• Send us 3 pictures.

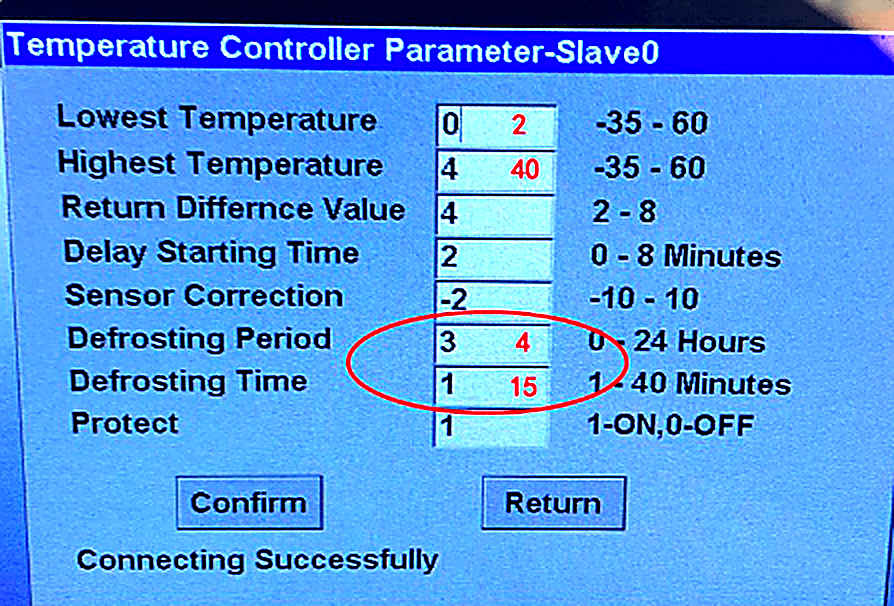

• 1st - Temperature controller parameter settings that looks like below.

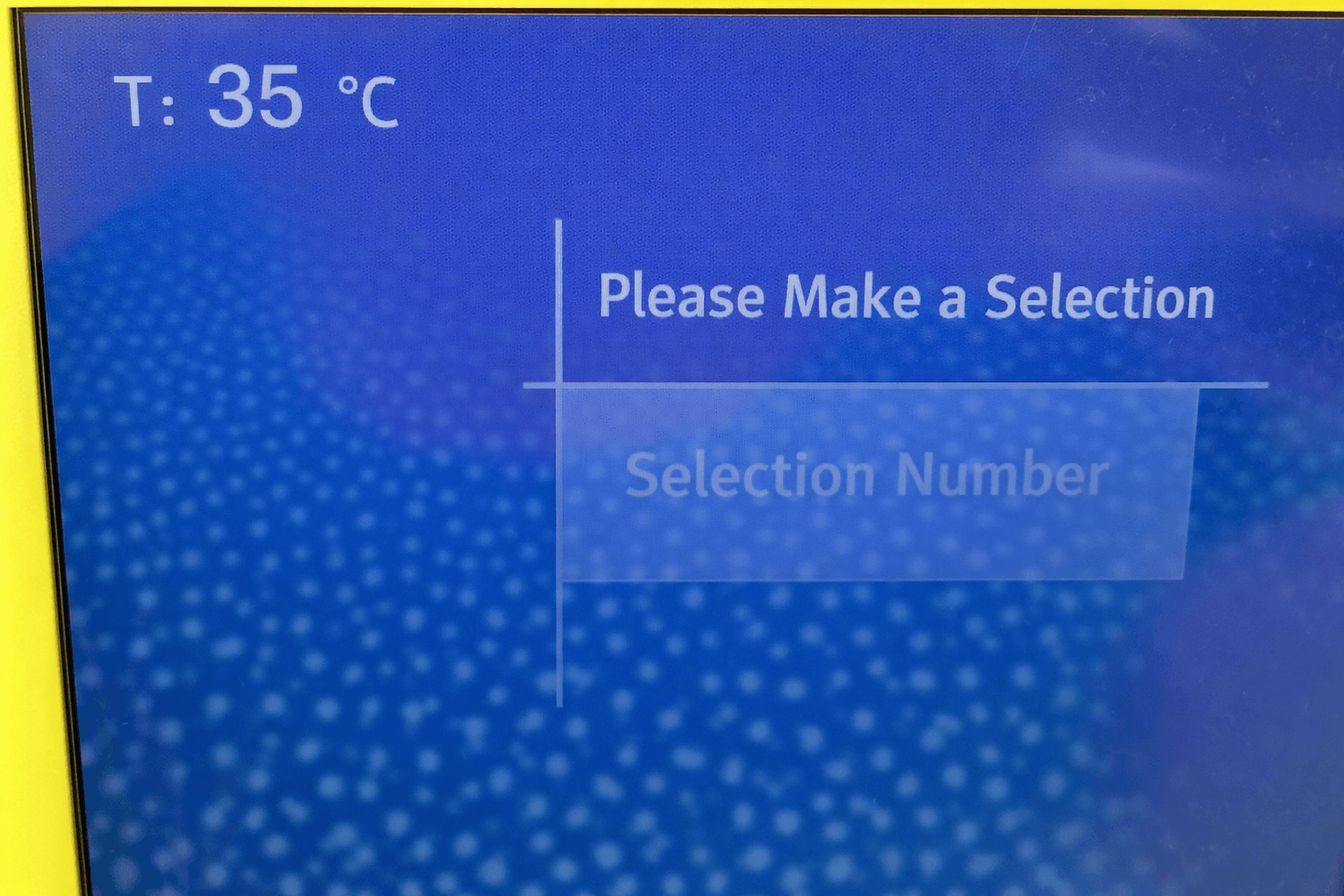

• 2nd - picture of the 5 inches screen where the temperature is displayed

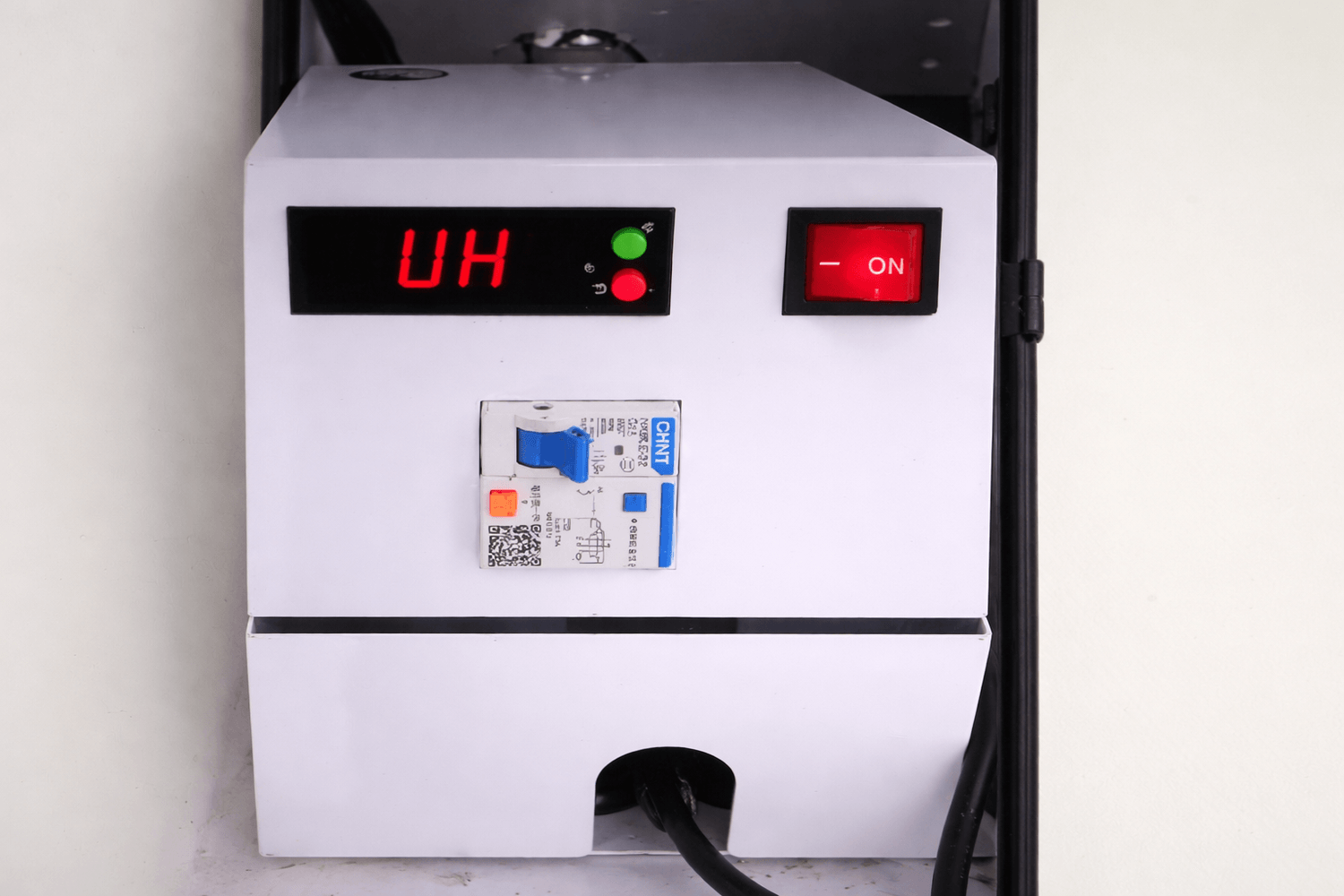

• 3rd - picture of the compressor where the temperature shows.

• The compressor doesn't get cold problem. Click here.
